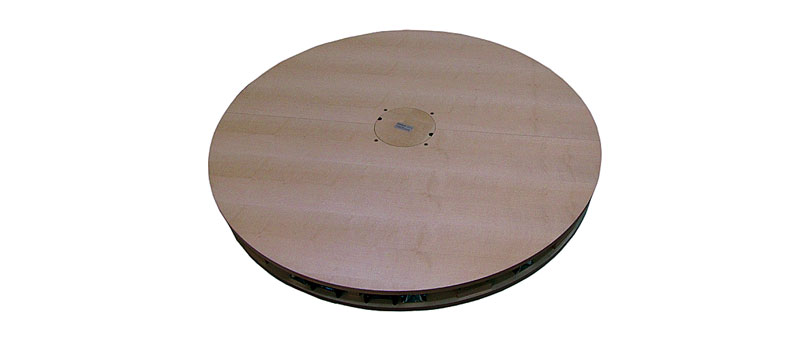

Turntable DS1200-HA
| Diameter | 1,2 m |
| Permissible load | max. 300kg |
| Height | 156 mm |
| Material carrier plate | wood |
| Min. Rotating time | 0,5 rpm. |
| Max. Rotating time | 2,0 rpm. |
| Positioning accuracy | +/-1° |
| Rotating angle | -200° to +400° |
| Control | fibre optic cable (POF type) |
| Drive of turntable | chain drive, worm gear |
| Motor | electronic EC motor 150W |
| Drive unit | shielded and radio interference suppressed; 20dB under CISPR 22 Class B |
| Temperature range | 0 °C...+40 °C |
| Working range | 5 °C...+35 °C |
| Current consumption | max. 1,6A |
| Voltage | 115 / 230V (50-60Hz) |
Brief description
The DS1200-HA turntable is specifically designed for installation either at intermediate levels in electromagnetic absorption chambers or in open areas. The base plate is available in waterproof, laminated and lacquered wood (30 mm thickness).
A 20 cm diameter opening in the centre of the turntable provides the capability to insert a power supply for testing.
The IEEE 488 (GPIB) bus, when operated with the CO2000 Controller, or IEEE 488 (GPIB) & TCP/IP (LAN) interface, when operated by CO3000 Controller provides an additional control option for all functions.
