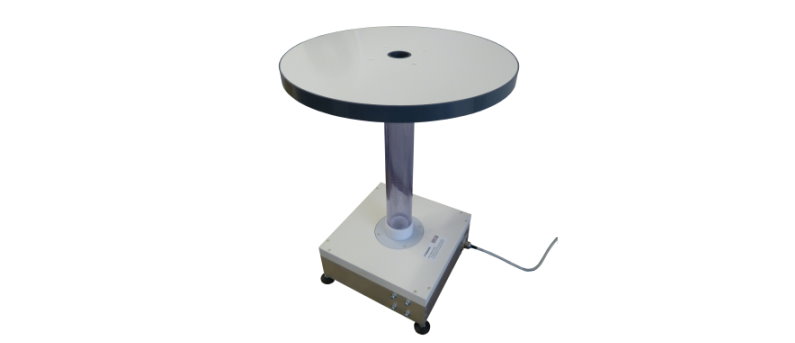

Compact Table CTE0500

Diameter 500 mm
Permissible load max. 25kg
Min. height 700 mm
Max. height 1100 mm
Material carrier plate Kömacel, PVC-border-ring
Min. Rotating time 0,5 rpm.
Max. Rotating time 2,0 rpm.
Positioning accuracy +/-1°
Rotating angle ±200° or -20° to +380°
Control fibre optic cable (POF type)
Drive of turntable 1 gear belt (Kevlar, metal-free)
Motor electronic EC motor 150W
Drive unit shielded and radio interference suppressed; 20dB under CISPR 22 Class B
Current consumption max. 1,6A
Voltage 115 / 230V (50-60Hz)

Brief description

The CTE0500 is a compact and inexpensive turntable for test opjects up to 25 kg (55 lbs.). The height of the CTE turntable is easy adjustable by using a clamp on the centre-rod. The drive unit is located at the lower part and could be covered with floor-absorbers. The CTE0500 is dismountable and easy to transport. The options for the automatically control are the controller CO3000 or directly a PC via USB.

If ordered with PC Control, the CTE0500 will be delivered with small demo software written in Visual Basic, C++ or LabView.

The GPIB (IEEE 488) bus, when operated with the CO2000 Controller, or GPIB (IEEE 488) & LAN (TCP/IP), when operated by CO3000 Controller provides an additional control option for all functions.
