Turntables

Innco systems turntables are designed to be installed for surface mounting, free space environments or integrated, as part of a raised ground plane floor system.  Innco systems have designs for both inside EMC Chambers or as part of an Open Area Test Site (OATS). The turntable top cover plates are available in plastic, sealed multilayer wood or stainless steel.

The turntable connection panel (CP) can be mounted in the center or at a position to be agreed. Standard power supplies, connectors or custom specific supplies can be provide, which can also include cable management systems (energy chain).

High performance electric continuity in ground plane floors during rotation is achieved using a proven copper connection system.

Our solutions provide optimized EMC performances, using specially design shielded drive units, which provide our turntable systems with the required 20dB below the limit line of CISPR 12 and CISPR 22.

Key Facts

  • Top plate made of PVC
  • 0.5...1.0 m diameter
  • 25kg...100kg load

Key Facts

  • Top plate made of PVC
  • 0.5m diameter
  • 5kg...25kg load
  • 700mm...1100mm height extendable

Key Facts

  • Top plate made of wood
  • 1.2...2 m diameter
  • 300kg...500kg load

Key Facts

  • Top plate made of wood
  • 1.2...2 m diameter
  • 300kg...500kg load

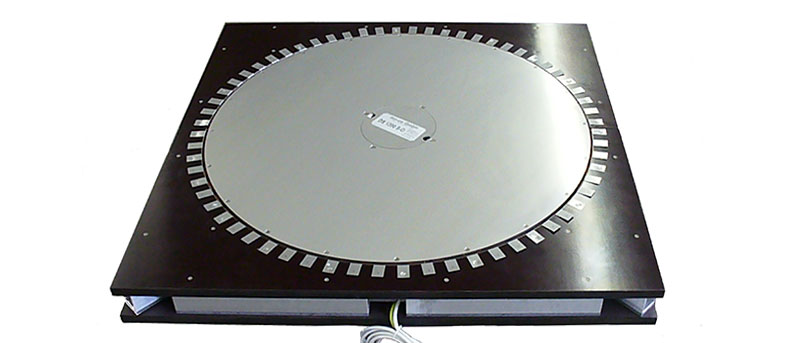

Key Facts

  • Top plate made of stainless steel
  • 1.2...2 m diameter
  • 500kg...1000kg load

Key Facts

  • Top plate made of stainless steel
  • 2.0...10.0 m diameter
  • 1000 kg...20.000kg load

Key Facts

  • Top plate made of stainless steel
  • 3.0...10.0 m diameter
  • 1000 kg...20.000kg load

Key Facts

  • Top plate made of PVC
  • 1.2 m...1.5 m diameter
  • 25 kg...100 kg load
