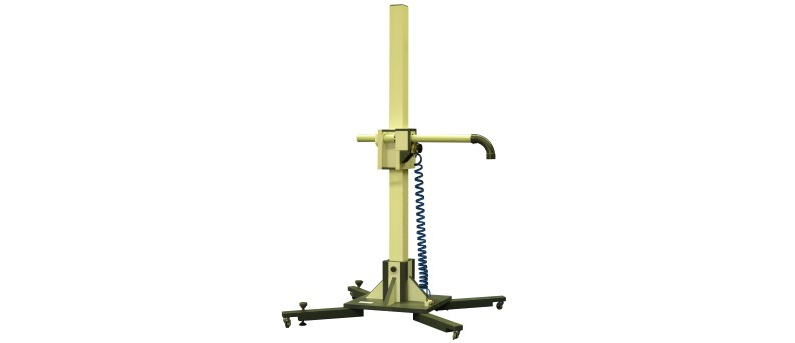

Antenna Stand AS2000-PP-10kg
| Antenna height adjustable manually from | min. 700 mm to max. 2000 mm |
| Total mast height | 2169 mm |
| Material | Körmacell & fibre glass, weatherproofed |
| Mast cross-section | 60 mm x 60 mm |
| Base L x W | 900 mm x 600 mm |
| Antenna weight | max. 10 kg |
| Polarisation | 0°/90° (vert./hor.) |
| Polarisation time 0°/90° | approx. 3 sec |
| Polarisation drive | pneumatic rotation cylinder via solenoid valve |
| Drive unit | shielded and radio interference suppressed; 20dB under CISPR 22 Class B |
| Control | microcontroller board by fibre optic |
| Air Pressure | max. 6 bar |
| Temperature range | 5°C...+35 °C |
Brief description
The AS2000-PP antenna stand is specifically designed for measurements in electromagnetic absoption chambers at a fixed measuring height.
Polarisation is driven by compressed air. A solenoid valve located outside of the chamber regulates the compressed air flow. The antenna bar height is manually adjustable.
When operated with the CO3000 controller, antenna polarisation occurs manually or via the IEC (IEEE) bus.
