Turn Device DE3900-RH
| Max. Tire Diameter | 21" |
| Measuring height | 1250 mm |
| Total weight | 65 kg |
| Material | Rohacell 110 IG |
| Max. Load on the axle | 50 kg |
| Rotating time | min. 0,05 r/pm max. 1,0 r/pm |
| Positioning accuracy | +/- 1° |
| Rotating angle | 0°...360° continous |
| Motor | electronic EC motor, 150W |
| Drive unit | shielded and radio interference suppressed 20dB under Class B |
| Temperature working range | +5 °C...+40°C |
| Input current | max. 1,6 A |
| Operating voltage | 230 V AC (50/60 Hz) |
Brief description
The DE3900-RH turn device is specifically designed for measurements of Tire Preassure Sensors. The turning axis is designed as easy removable shaft with a quick-lock system for many hub-diameters of rims up to 21". With the exception of the drive only plastic and Rohacell components are used.

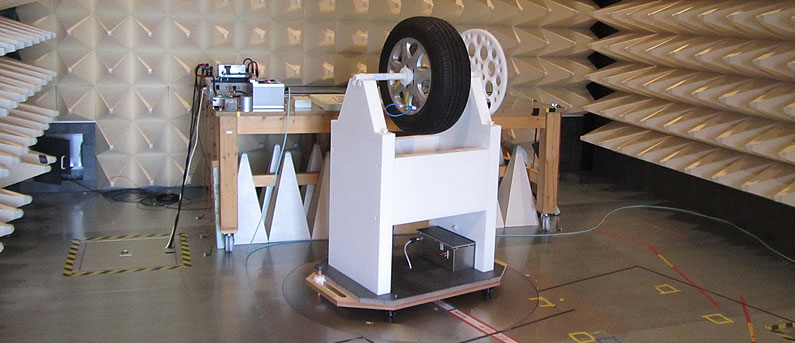

The turn device DE3900-RH is mounted on a movable support which contains the drive unit and can be fixed on a standard Turntable. The mounted lockable rollers allow a easy setup and storage ot the Turndevice.
A movable preperation stand to measure, prepare and adjust the rim position on the shaft is optionally available.
The GPIB (IEEE 488) bus, when operated with the CO2000 Controller, or GPIB (IEEE 488) & LAN (TCP/IP), when operated by CO3000 Controller provides an additional control option for all functions.
